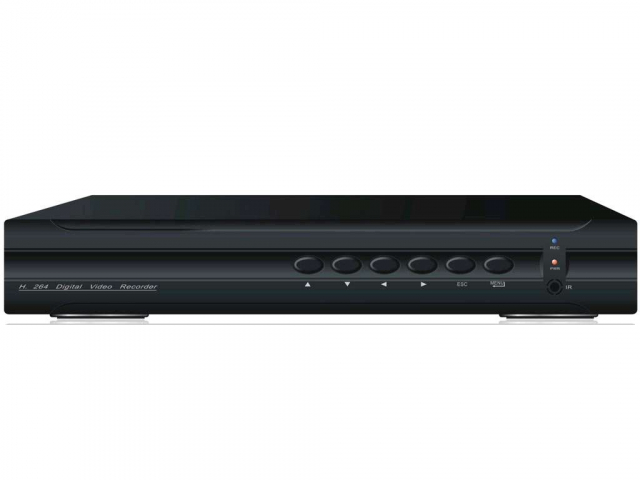

Видеорегистратор DVR0808СD (8 видеовходов 8 аудиовходов в формате H.264. Запись с разрешением CIF 200 кад/c или D1 50 кад/c, возможность записи 2-х каналов в D1 25 кадр/сек, Lan, USB, ТВ и VGA выходы, PTZ. Габариты: 220х295х45 мм, вес - 1,2 кг)

System Main Processor High performance embedded microprocessor HI3515
Operating System Embedded LINUX
System Resources Pentaplex function:live,recording,playback,backup & remote access
User Interface GUI,on-screen menu tips
Display 1/4/8/9
Video Video Standards PAL 625 line,50 f/s;NTSC 525 line,60 f/s
Video Compression H.264 main profile
Video Recording CIF/QCIF
Encode capacity 50/60fps(D1)+200/240fps(CIF)
Motion Detection Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP
Audio Audio Compression G711A
Bidrectional Talk Support
Record & Playback Recording Mode Manual/Alarm/Video Detection/Continuous
Playback 1~16CH playback simultaneously
Search Mode Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage & Backup Space Occupation Audio 28.8MB/H ;Video 25~450 MB/H
Record Storage Local Hard disk and Network
Backup Mode Network download/Flash stick/movable HDD/SATA HDD/DVD-RW

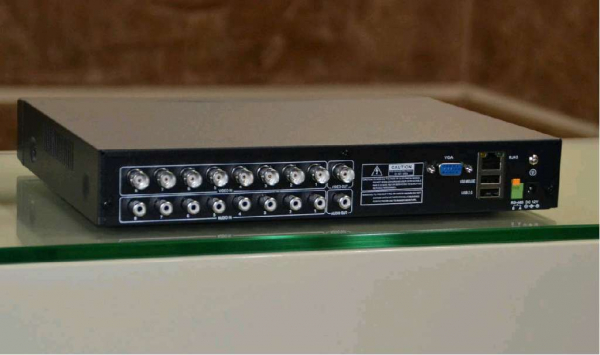

Interface Video Input 8 CH
Video Output 1 BNC, 1 VGA
Audio Input 8CH
Audio Output 1CH
Alarm Input N/A
Alarm Output N/A
Net Interface RJ45(10M/100M)
PTZ Control 1 RS485
USB Interface 2 USB2.0
Hard Disk 1 SATA ports(Max 2048G)
Environmental Power Supply 12V/2A
Power Consumption <10W(not including harddisk)
Working Temperature 0?~+55?
Working Humidity 10%~90%
Atmosphere Pressure 86kpa~106kpa
Dimension 295MM(width)* 220MM(length)* 45MM(hight)
Weight 1.2KG
