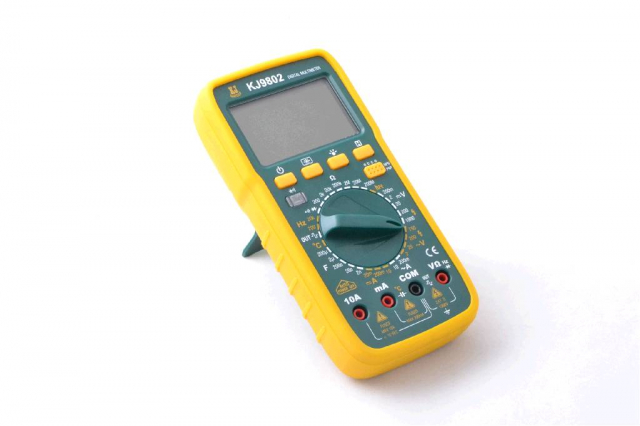

Digitall Multimeter KJ9802
Код товара: 39099
Оценка покупателей: 0 голосов Голосовать
Technical data Function Range KJ9802 DC Voltage 200mV/2V/20V/200V/1000V ±(0.5%+3) AC Voltage 200mV/2V/20V/200V/750V (200mV range for KJ9801 only) ±(1.0%+3) DC Current 200uA/2mA/20mA/200mA/10A (200uA/2mA range for KJ9801 only) ±(0.8%+8) AC Current 2mA...
Подробное описаниеУ вас появились вопросы?
Наш специалист даст ответы!
Наш специалист даст ответы!
- Подробное описание
Technical data | ||
Function | Range | |
KJ9802 | ||
DC Voltage | 200mV/2V/20V/200V/1000V | ±(0.5%+3) |
AC Voltage | 200mV/2V/20V/200V/750V (200mV range for KJ9801 only) | ±(1.0%+3) |
DC Current | 200uA/2mA/20mA/200mA/10A (200uA/2mA range for KJ9801 only) | ±(0.8%+8) |
AC Current | 2mA/200mA/10A (2mA range for KJ9801only) | ±(1.0%+8) |
Resistance | 200O/2kO/20kO/2MO/20MO/200MO | ±(1.0%+2) |
Capacitance | 2nF/20nF/200nF/2µF/200µF | ±(4.0%+3) |
Frequency | 200Hz/20kHz | ±(1.5%+5) |
Temperature | -40~400єC/400~1000єC | ±(3.5%+15) |
Square wave output | v | |
Diode test | v | |
HFE | v | |
Audible & Visual continuity | v | |
LED illumination | v | |
Backlight display | v | |
Data hold | v | |
Auto power off | v | |
General Description | ||
Power supply | 9V battery | |
LCD size | 68х42mm | |
Included accessories | Test lead, battery, user manual | |
Product weight | Approx. 383g(battery included) | |
Product dimension | 197(L)х96(W)х53(H) mm |
